• Country
• Finland

• Manufacturer / Brand
• Oy Helvar; Helsinki

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97969

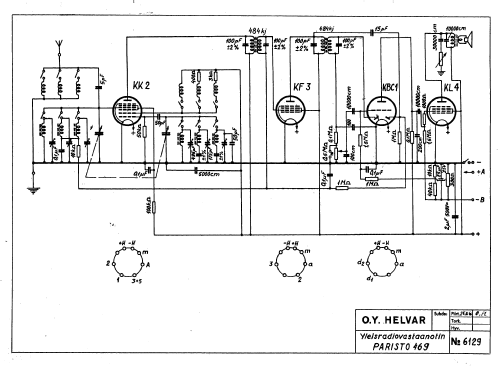

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• KK2 KF3 KBC1 KL4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries

• Material
• Wooden case

• from Radiomuseum.org

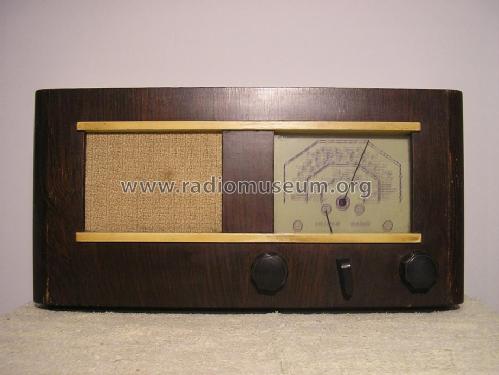

• Model: Paristo Super 469P - Oy Helvar; Helsinki

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 2,400.00 Fmk

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Eero Ukkola. See "Data change" for further contributors.

• Other Models

• Here you find 254 models, 214 with images and 93 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Oy Helvar; Helsinki
