HE 4

HE 4; Henry, Kapt. (ID = 1465425) Ampl/Mixer
HE 4; Henry, Kapt. (ID = 1466738) Ampl/Mixer HE 4; Henry, Kapt. (ID = 1466739) Ampl/Mixer
HE 4; Henry, Kapt. (ID = 1466740) Ampl/Mixer
Use red slider bar for more.

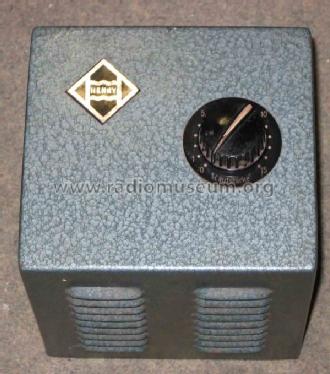

HE 4; Henry, Kapt. (ID = 1466738) Ampl/Mixer
Henry, Kapt.: HE 4 [Ampl/Mixer] ID = 1466738 600x681
Select picture or schematic to display from thumbnails on the right and click for download.
For model HE 4, Henry, Kapt. Heinrich & Co.; Wien

Country:  Austria
Manufacturer / Brand:  Henry, Kapt. Heinrich & Co.; Wien
Year: 1960 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 1: EL84
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (undistorted)
from Radiomuseum.org Model: HE 4 - Henry, Kapt. Heinrich & Co.;
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 150 x 175 x 135 mm / 5.9 x 6.9 x 5.3 inch
Notes

Verstärker für Kontroll-Lautsprecher HE 4.
Annähernd würfelförmiges Gehäuse.

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Literature/Schematics (2) Schaltung von meinem Gerät aufgenommen

Model page created by Hans Haas. See "Data change" for further contributors.
