HV756a

HV756a; Henry, Kapt. (ID = 2274763) Ampl/Mixer

HV756a; Henry, Kapt. (ID = 2274764) Ampl/Mixer

HV756a; Henry, Kapt. (ID = 2274765) Ampl/Mixer

HV756a; Henry, Kapt. (ID = 2274766) Ampl/Mixer
HV756a; Henry, Kapt. (ID = 2233321) Ampl/Mixer HV756a; Henry, Kapt. (ID = 2233322) Ampl/Mixer
HV756a; Henry, Kapt. (ID = 2233315) Ampl/Mixer HV756a; Henry, Kapt. (ID = 2274767) Ampl/Mixer
HV756a; Henry, Kapt. (ID = 2274768) Ampl/Mixer
Use red slider bar for more.
HV756a; Henry, Kapt. (ID = 2233321) Ampl/Mixer
Henry, Kapt.: HV756a [Ampl/Mixer] ID = 2233321 950x1028
Select picture or schematic to display from thumbnails on the right and click for download.
For model HV756a, Henry, Kapt. Heinrich & Co.; Wien:
Bild von einem Gast über admin.de

Country:  Austria
Manufacturer / Brand:  Henry, Kapt. Heinrich & Co.; Wien
Year: 1940 ? Category: Audio Amplifier or -mixer

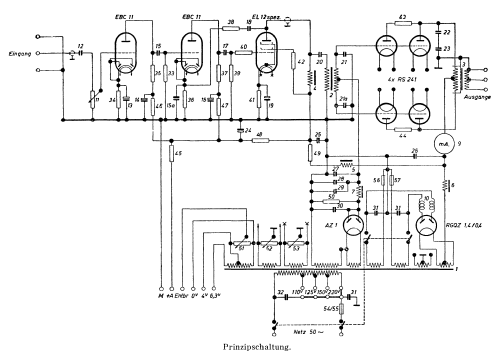

Valves / Tubes 8: EBC11 EBC11 EL12spez RS241 RS241 RS241 RS241 AZ1 RGQz1,4/0,4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HV756a - Henry, Kapt. Heinrich & Co.;
Material Metal case
Shape Tablemodel, low profile (big size).
Notes

Genannte Röhrenbestückung nicht gesichert aber sehr wahrscheinlich richtig.

Siehe auch das ähnliche Modell Henry HV755

Model page created by Bernhard Nagel. See "Data change" for further contributors.



All listed radios etc. from Henry, Kapt. Heinrich & Co.; Wien
Here you find 68 models, 60 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
