SSB Transceiver Tempo One (1)

SSB Transceiver Tempo One ; Henry Radio, Inc.; (ID = 1052750) Amateur SSB Transceiver Tempo One ; Henry Radio, Inc.; (ID = 1052751) Amateur
SSB Transceiver Tempo One ; Henry Radio, Inc.; (ID = 1052752) Amateur SSB Transceiver Tempo One ; Henry Radio, Inc.; (ID = 1052753) Amateur
SSB Transceiver Tempo One ; Henry Radio, Inc.; (ID = 1052754) Amateur SSB Transceiver Tempo One ; Henry Radio, Inc.; (ID = 1052755) Amateur
Use red slider bar for more.
SSB Transceiver Tempo One ; Henry Radio, Inc.; (ID = 1052750) Amateur
Henry Radio, Inc.;: SSB Transceiver Tempo One [Amateur] ID = 1052750 760x392
Select picture or schematic to display from thumbnails on the right and click for download.
For model SSB Transceiver Tempo One (1), Henry Radio, Inc.; Los Angeles, CA:
aus ebay, #130566064777, mit Erlaubnis des Verkäufers spiritman68

Country:  United States of America (USA)
Manufacturer / Brand:  Henry Radio, Inc.; Los Angeles, CA
Year: 1970 ?? Category: Amateur Transmitter/Receiver (and Transceiver)
Valves / Tubes 16: 6U8 6BZ6 6CB6 6EJ7 12BY7A 6JS6A 6JS6A 6AV6 12AU7 6BM8 12AX7 6BZ6 6BA6 12AX7 12AU7 7360
Semiconductors (the count is only for transistors) 7:
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - This model requires external speaker(s).
Power out 1 W (undistorted)
from Radiomuseum.org Model: SSB Transceiver Tempo One - Henry Radio, Inc.; Los Angeles
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.25 x 5.5 x 11 inch / 337 x 140 x 279 mm
Notes

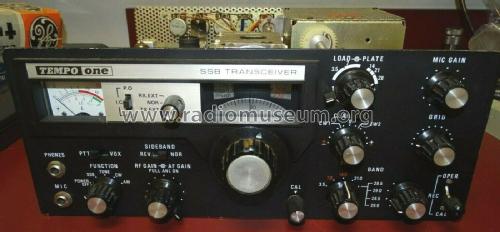

The Henry Radio Tempo One is a transceiver operating on all amateur bands from 80 to 10 meters in LSB, USB, CW and AM modes with 300 watts PEP.

Tempo One is identical to Yaesu FT-200.

Net weight (2.2 lb = 1 kg) 17.5 lb (17 lb 8 oz) / 7.945 kg
Price in first year of sale 369.00 USD
Mentioned in QST (August 1974 inside back cover)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Henry Radio, Inc.; Los Angeles, CA
Here you find 10 models, 9 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
