Einkreis-Empfänger W3
Use red slider bar for more.

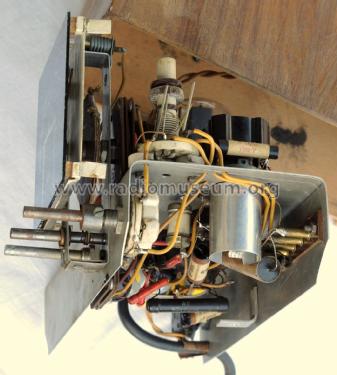

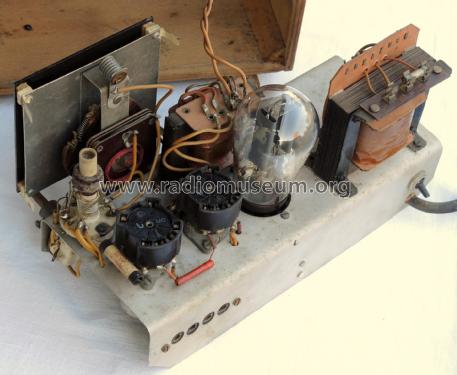

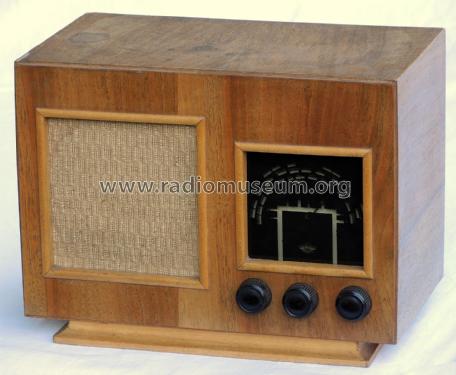

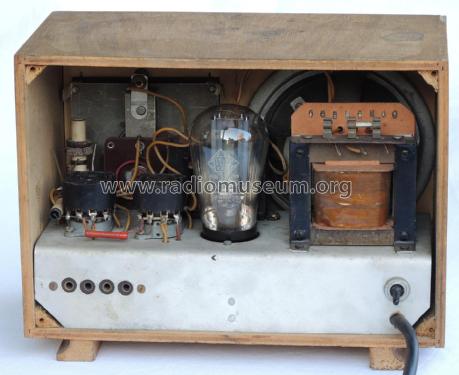

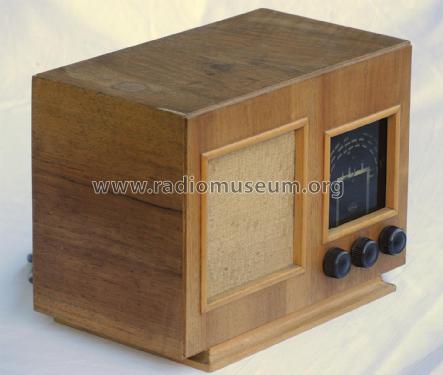

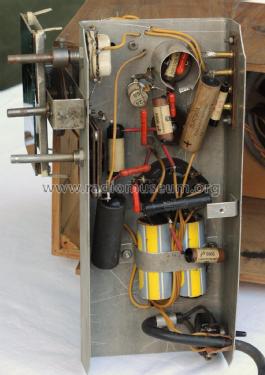

Hera GmbH; wo?: Einkreis-Empfänger W3 [Radio] ID = 2593349 1400x1151
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1948 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: RV12P2000 RV12P2000 AZ1 |
|---|
| Main principle | TRF with regeneration |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Einkreis-Empfänger W3 - Hera GmbH; wo? |
| Material | Wooden case |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Dimensions (WHD) | 265 x 205 x 165 mm / 10.4 x 8.1 x 6.5 inch |
| Notes | KW-Empfangsbereich: 50 - 15 m. |
Model page created by Bernhard Nagel. See "Data change" for further contributors.
