Tiffany Tone 535
Horn Radio Mfg. Co., Herbert H. (Tiffany Tone); Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Horn Radio Mfg. Co., Herbert H. (Tiffany Tone); Los Angeles, CA
- Year
- 1935/1936
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 44219

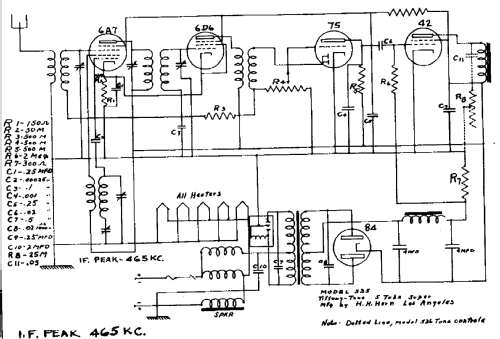

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Tiffany Tone 535 - Horn Radio Mfg. Co., Herbert H
- Shape
- Chassis only or for «building in»
- Notes
-
Vibrator for +B supply.
- Price in first year of sale
- 25.80 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (3)

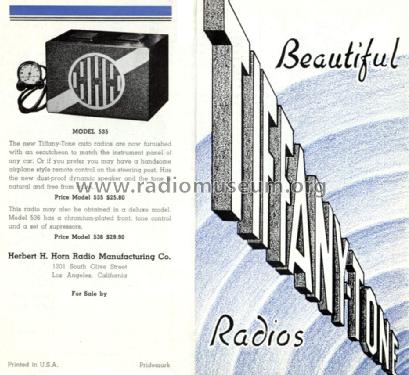

- -- Original prospect or advert (The Tiffany-Tone Folder for 1936.)
