• Country
• United States of America (USA)

• Manufacturer / Brand
• Horn Radio Mfg. Co., Herbert H. (Tiffany Tone); Los Angeles, CA

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44232

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 6D6 75 42 6U5 80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tiffany Tone 67 - Horn Radio Mfg. Co., Herbert H

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 10 x 8.5 inch / 406 x 254 x 216 mm

• Notes

• Bandfilter input for BC Band, tuning eye.

  Tuning range 540 - 18,000 Kc.

• Net weight (2.2 lb = 1 kg)
• 18 lb (18 lb 0 oz) / 8.172 kg

• Price in first year of sale
• 32.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in

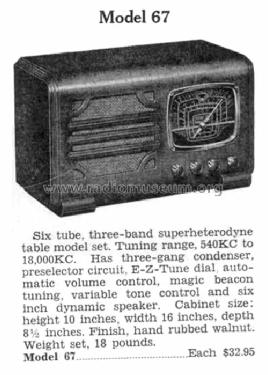

• -- Original prospect or advert (Advert 1938)
