Arena T 2400

Arena T 2400; Arena, Horsens (ID = 373641) Radio
Arena T 2400; Arena, Horsens (ID = 824053) Radio Arena T 2400; Arena, Horsens (ID = 824055) Radio
Arena T 2400; Arena, Horsens (ID = 372412) Radio
Use red slider bar for more.
Arena T 2400; Arena, Horsens (ID = 824053) Radio
Arena, Horsens: Arena T 2400 [Radio] ID = 824053 600x155
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arena T 2400, Arena, Horsens

Country:  Denmark
Manufacturer / Brand:  Arena, Horsens
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 36:
Main principle Super-Heterodyne (Super in general)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Arena T 2400 - Arena, Horsens
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 100 x 250 mm / 19.7 x 3.9 x 9.8 inch
Notes 2 Leistungsverstärker mit je 15 Watt Sinus. 5 fest abstimmbare UKW-Stationen. Passende Lautsprecher: HT 10 mit je einem Breitband und einem Hochton-Lautsprecher (Frequenzbereich: 40...20.000 Hz.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Collectors' prices
Source of data - - Data from my own collection

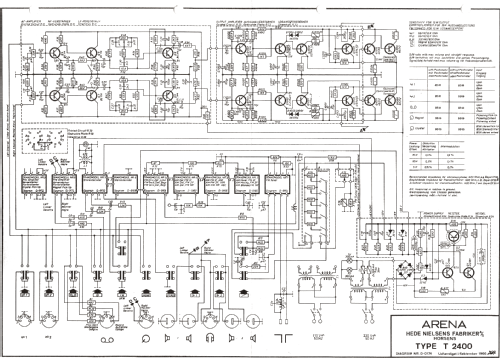

Mentioned in -- Schematic
Literature/Schematics (1) -- Original prospect or advert

Model page created by Egon Strampe. See "Data change" for further contributors.
