Trans Arena

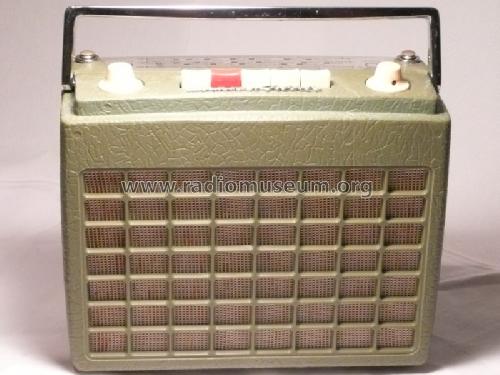

Trans Arena ; Arena, Horsens (ID = 696646) Radio Trans Arena ; Arena, Horsens (ID = 696645) Radio

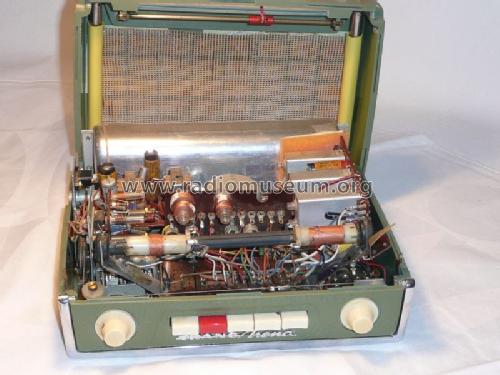

Trans Arena ; Arena, Horsens (ID = 696647) Radio
Use red slider bar for more.
Trans Arena ; Arena, Horsens (ID = 696646) Radio
Arena, Horsens: Trans Arena [Radio] ID = 696646 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trans Arena, Arena, Horsens

Country:  Denmark
Manufacturer / Brand:  Arena, Horsens
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Trans Arena - Arena, Horsens
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 180 x 100 mm / 9.1 x 7.1 x 3.9 inch
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Peter Gransitzki. See "Data change" for further contributors.
