Signal Generator 650A

Signal Generator 650A; Hewlett-Packard, HP; (ID = 390319) Equipment

Signal Generator 650A; Hewlett-Packard, HP; (ID = 390320) Equipment

Signal Generator 650A; Hewlett-Packard, HP; (ID = 384863) Equipment

Signal Generator 650A; Hewlett-Packard, HP; (ID = 384865) Equipment

Signal Generator 650A; Hewlett-Packard, HP; (ID = 384436) Equipment
Signal Generator 650A; Hewlett-Packard, HP; (ID = 380534) Equipment Signal Generator 650A; Hewlett-Packard, HP; (ID = 380532) Equipment
Signal Generator 650A; Hewlett-Packard, HP; (ID = 1337227) Equipment Signal Generator 650A; Hewlett-Packard, HP; (ID = 1636118) Equipment
Signal Generator 650A; Hewlett-Packard, HP; (ID = 1636119) Equipment
Use red slider bar for more.
Signal Generator 650A; Hewlett-Packard, HP; (ID = 380534) Equipment

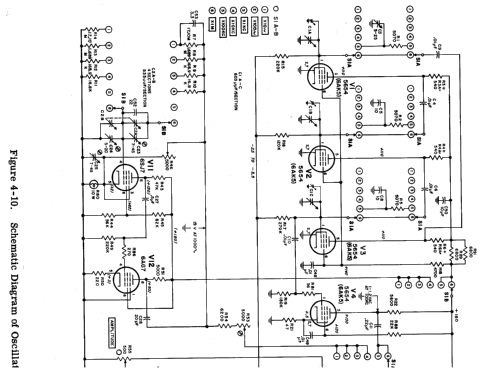

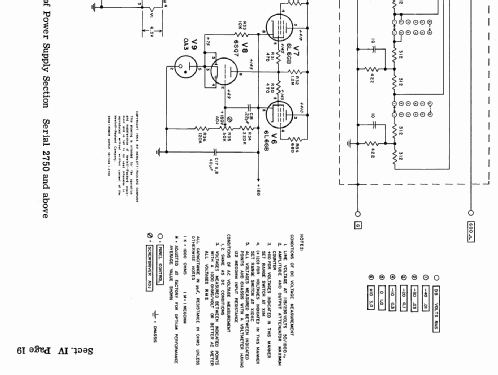

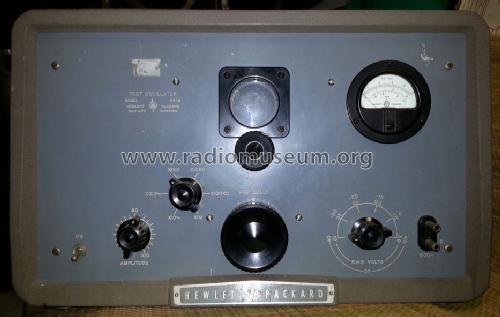

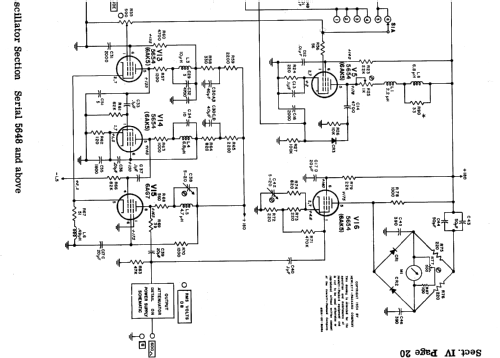

Hewlett-Packard, HP;: Signal Generator 650A [Equipment] ID = 380534 930x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal Generator 650A, Hewlett-Packard, (HP); Palo Alto, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1948 Category: Service- or Lab Equipment
Valves / Tubes 17: 5654 6L6GB 6SQ7 0A3 5U4GB 6SJ7 6AG7 12-4
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Signal Generator 650A - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Rack
Dimensions (WHD) 19 x 10.5 x 13.25 inch / 483 x 267 x 337 mm
Notes

Test-Oszillator 10 Hz bis 10 MHz. Der Output von 15 mW bezieht sich auf 600 Ohm.

Model 650A Resistance-tuned Oscillator is the first instrument of its kind that not only covers a frequency range of 10 cps to 10 mc, but brings to the r-f and video fields all the speed. This highly-stable precision instrument provides output flat within ±1 db from 10 cps to 10 mc, and a voltage range of.00003 to 3 volts. Output impedance is 600 ohms, or 6 ohms with 100 to 1 output voltage divider. Instrument includes built-in vacuum tube voltmeter and 50 db output attenuator.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 475.00 USD

Model page created by Heinz Höger. See "Data change" for further contributors.



All listed radios etc. from Hewlett-Packard, (HP); Palo Alto, CA
Here you find 355 models, 322 with images and 124 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
