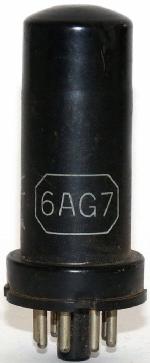

6AG7

Information - Help
ID = 3125

Country:
United States of America (USA)
Brand:
Developer: RCA (RCA Victor Co. Inc.); New York (NY)
Tube type:  Vacuum Pentode   Power/Output
Identical to 6AG7 = 6П9 = VT-247
Similar Tubes
Other shape (e.g. bulb type):
  OSW2192
Normally replaceable-slightly different:
  6AK7 ; 6AK7/6AG7 ; 6P9P
Other class quality (otherwise equal):
  2601_OSW ; 547-A ; 6AG7Y ; 6AG7_DDR ; 6AG7k ; OSW2601
Other base and data slightly different:
  6197 ; 6677
Differences not known by us:
  6AG7ST
First Source (s)
24.May.1939 : Electron Tube Registration List 187
Successor Tubes 6AN5   7AD7

Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Ukp)
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.65 Ampere / Indirect / Specified voltage AC/DC
Description

Video buffer/amplifier.


Tube prices 5 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Tube Lore (II)   p. 48 & 151
Taschenbuch zum Röhren-Codex 1948/49

6AG7: Manufacturer's Literature
Emilio Ciardiello
    More ...
369.png 6AG7: Telefunken Werkstattbuch
Wolfgang Bauer

More ...

Just Qvigstad
6AG7: original data sheet
Bernd Staginnus

More ...
Usage in Models 1= 1939 ; 1= 1941?? ; 2= 1942? ; 1= 1943?? ; 3= 1944 ; 1= 1945? ; 1= 1945 ; 2= 1946?? ; 5= 1946 ; 1= 1947?? ; 6= 1947 ; 1= 1948?? ; 1= 1948? ; 13= 1948 ; 13= 1949? ; 14= 1949 ; 2= 1950?? ; 3= 1950? ; 4= 1950 ; 30= 1951? ; 1= 1951 ; 2= 1952?? ; 10= 1952? ; 34= 1952 ; 1= 1953?? ; 3= 1953? ; 4= 1953 ; 1= 1954? ; 1= 1954 ; 2= 1955?? ; 5= 1955 ; 1= 1956?? ; 7= 1956? ; 3= 1956 ; 7= 1957? ; 1= 1958 ; 1= 1959? ; 2= 1959 ; 1= 1960?? ; 1= 1960 ; 1= 1961? ; 1= 1967

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):195
