VHF Signal Generator 608D

VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1556599) Equipment VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1762602) Equipment
VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1762604) Equipment VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1762605) Equipment
VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1762607) Equipment VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1762610) Equipment
VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1762613) Equipment VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1762616) Equipment
VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1803267) Equipment
Use red slider bar for more.
VHF Signal Generator 608D; Hewlett-Packard, HP; (ID = 1556599) Equipment

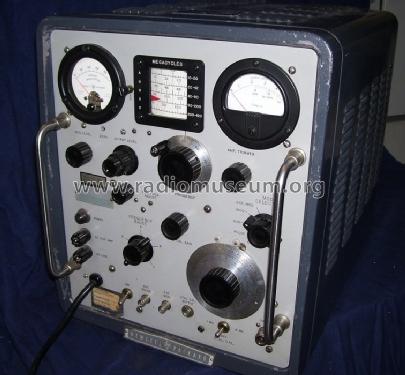

Hewlett-Packard, HP;: VHF Signal Generator 608D [Equipment] ID = 1556599 757x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF Signal Generator 608D, Hewlett-Packard, (HP); Palo Alto, CA:
immagine dalla mia collezione.

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1954 ?? Category: Service- or Lab Equipment
Valves / Tubes 18: 6AH6 6AH6 6AL5 6AL5 6AU6 6BC4 6BQ7A 6CL6 6CL6 6CL6 6U8 12AT7 12AT7 12AU7 5675 5876 6080 6080
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: VHF Signal Generator 608D - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

High stability generator; 10 to 420 MHz;
built-in crystal calibrator, switching to 1 MHz or 5 MHz.

Similar to hp 608C with the addition of a buffer amplifier.

Price in first year of sale 1'050.00 $
Source of data -- Original-techn. papers.
Literature/Schematics (1) Electronics, April 1955

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
