209-A Volt-Ohm Capacity Milliammeter

209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 968583) Equipment 209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 968584) Equipment
209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 216440) Equipment 209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 1199493) Equipment
209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 1229895) Equipment 209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 1418208) Equipment
209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 1823102) Equipment
Use red slider bar for more.
209-A Volt-Ohm Capacity Milliammeter; Hickok Electrical (ID = 968583) Equipment
Hickok Electrical: 209-A Volt-Ohm Capacity Milliammeter [Equipment] ID = 968583 503x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 209-A Volt-Ohm Capacity Milliammeter, Hickok Electrical Instrument Co.; Cleveland, OH

Country:  United States of America (USA)
Manufacturer / Brand:  Hickok Electrical Instrument Co.; Cleveland, OH
alternative name

Hickock
Year: 1947–1951 Category: Service- or Lab Equipment
Valves / Tubes 5: 6X5GT 6AL5 6SJ7 6SN7GT 6X5GT
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 50-70 cycles, 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: 209-A Volt-Ohm Capacity Milliammeter - Hickok Electrical Instrument
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16.25 x 13.25 x 7 inch / 413 x 337 x 178 mm

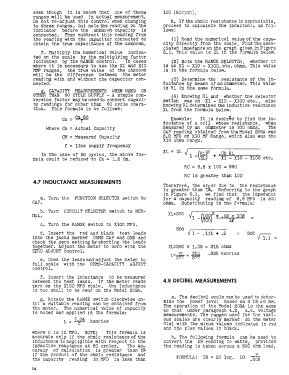

Notes

Uses a 9" meter and a 30 cycle to 300 megacycle high-frequency probe having an input impedance of 6 mmf and 12 megohms. The d-c ranges of 0-3, 12, 30, 120, 300 and 1200 volts rejekt a-c components, for use across reversing switch included. Resistance from .1 ohm to 10,000 megohms in 8 ranges, a-c volts and d-c milliamperes in 6 ranges, and capacity from 1-10,000 mmf and 1-1,000 mf in 7 ranges can be measured. Six tubes are used.

Price in first year of sale 133.00 $
Mentioned in Radio Retailing (Radio & Television R.) (May 1947 page 126.)
Literature/Schematics (1) 1951 Newark catalog Nº 51

Model page created by Vitor Oliveira. See "Data change" for further contributors.
