Cardmatic Tube Tester AN/USM-118B

Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553675) Military Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553676) Military
Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553678) Military Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553679) Military
Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553680) Military Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553681) Military
Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553682) Military Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553684) Military
Use red slider bar for more.
Cardmatic Tube Tester AN/USM-118B; Hickok Electrical (ID = 1553675) Military
Hickok Electrical: Cardmatic Tube Tester AN/USM-118B [Military] ID = 1553675 933x743

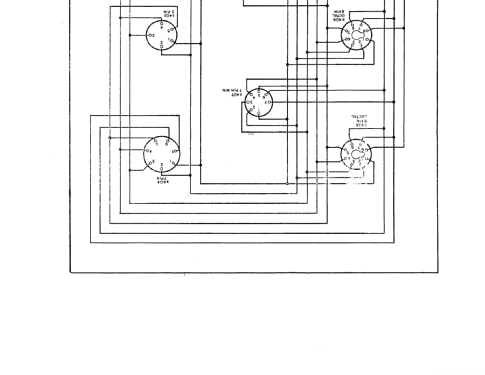

Select picture or schematic to display from thumbnails on the right and click for download.
For model Cardmatic Tube Tester AN/USM-118B, Hickok Electrical Instrument Co.; Cleveland, OH:
aus ebay, #190934977783, mit Erlaubnis des Verkäufers mono

Country:  United States of America (USA)
Manufacturer / Brand:  Hickok Electrical Instrument Co.; Cleveland, OH
alternative name

Hickock
Year: 1964 Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 7: 6AU8 6CL6 6AW8A 5AU4 6CD6 6C4WA 6203 0A2WA
Semiconductors (the count is only for transistors) 2: 2N2219 2N1711
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Cardmatic Tube Tester AN/USM-118B - Hickok Electrical Instrument
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 495 x 241 x 432 mm / 19.5 x 9.5 x 17 inch
Notes Dioden:24, Zenerdiode;1, Neonlamps:13
Source of data -- Original-techn. papers.

Model page created by Jos Lauth. See "Data change" for further contributors.
