Cardmatic Tube Test Set 123A

Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663360) Equipment Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663373) Equipment

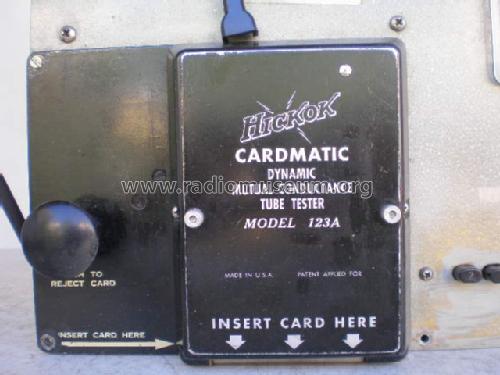

Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663362) Equipment Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663365) Equipment
Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663368) Equipment Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663371) Equipment
Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663372) Equipment Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663375) Equipment
Use red slider bar for more.
Cardmatic Tube Test Set 123A; Hickok Electrical (ID = 663360) Equipment
Hickok Electrical: Cardmatic Tube Test Set 123A [Equipment] ID = 663360 933x463
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cardmatic Tube Test Set 123A, Hickok Electrical Instrument Co.; Cleveland, OH

Country:  United States of America (USA)
Manufacturer / Brand:  Hickok Electrical Instrument Co.; Cleveland, OH
alternative name

Hickock
Year: 1965 ?? Category: Service- or Lab Equipment
Valves / Tubes 4: 6AU6 6DQ6 5U4 6X4
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Cardmatic Tube Test Set 123A - Hickok Electrical Instrument
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 760 x 245 x 385 mm / 29.9 x 9.6 x 15.2 inch
Notes Different from other Cardmatic tester. Cardmatic ist not a certain model, but describes the programming by slot-in cards.

Provavalvole Dinamico per prova della mutua conduttanza, automatico a schede. Possiede 10 zoccoli per i tubi in prova, 1825 schede provatubi, 6 schede di calibrazione, 8 schede di prova
Net weight (2.2 lb = 1 kg) 75 lb 0 oz (75 lb) / 34.050 kg
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Fabio Masetti. See "Data change" for further contributors.
