OS-12 A.F.-R.F. Oscillator All-Wave Oscillator

OS-12 A.F.-R.F. Oscillator; Hickok Electrical (ID = 909885) Equipment OS-12 A.F.-R.F. Oscillator; Hickok Electrical (ID = 909887) Equipment

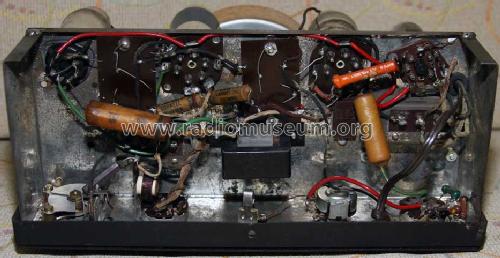

OS-12 A.F.-R.F. Oscillator; Hickok Electrical (ID = 909888) Equipment
Use red slider bar for more.

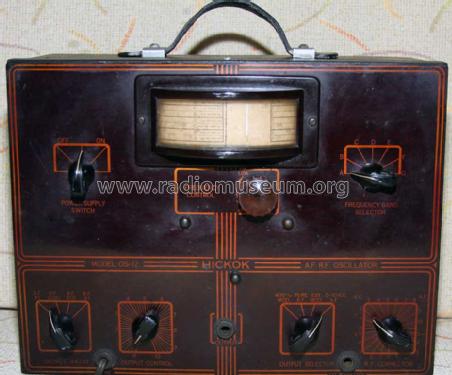

OS-12 A.F.-R.F. Oscillator; Hickok Electrical (ID = 909885) Equipment
Hickok Electrical: OS-12 A.F.-R.F. Oscillator [Equipment] ID = 909885 933x773
Select picture or schematic to display from thumbnails on the right and click for download.
For model OS-12 A.F.-R.F. Oscillator All-Wave Oscillator, Hickok Electrical Instrument Co.; Cleveland, OH:
By courtesy of guest Plinio Fabbro, Limeira, SP, Brasil.

Country:  United States of America (USA)
Manufacturer / Brand:  Hickok Electrical Instrument Co.; Cleveland, OH
alternative name

Hickock
Year: 1938 Category: Service- or Lab Equipment
Valves / Tubes 4: 6J7G 6C6 78 6X5GT
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100-120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: OS-12 A.F.-R.F. Oscillator [All-Wave Oscillator] - Hickok Electrical Instrument
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12 x 9.25 x 6 inch / 305 x 235 x 152 mm
Notes Frequency band selector's range of the "All-Wave Oscillator" OS-12 from Hickok: Position A= 90 to 250 kc; B= 250 to 650 kc; C= 600 to 1,600 kc; D= 1.6 to 3.8 mc; E= 3.6 to 9.5 mc; F= 9 to 25 mc and G= 24 to 50 mc.
Price in first year of sale 38.00 $
External source of data 1938 Radolek Catalog
Literature/Schematics (1) 1938 Radolek Catalog

Model page created by Vitor Oliveira. See "Data change" for further contributors.
