Multimeter AF105

• Country
• Japan

• Manufacturer / Brand
• Hioki E.E. Corporation; Ueda

• Year
• 1970–1977

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 200027

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2 x 1,5 & 22,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Multimeter AF105 - Hioki E.E. Corporation; Ueda

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 108 x 164 x 60 mm / 4.3 x 6.5 x 2.4 inch

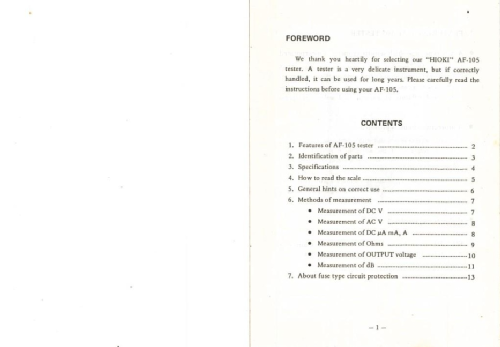

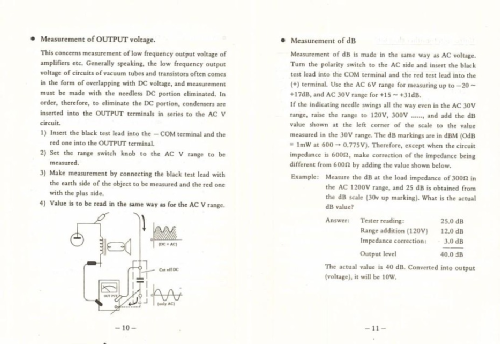

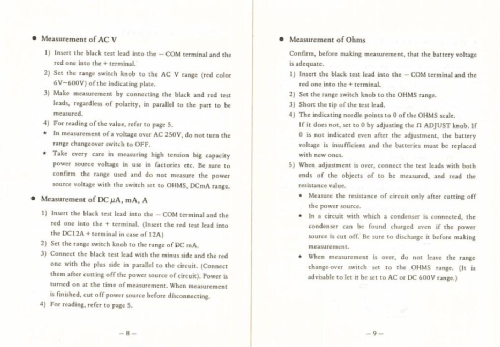

• Notes
• DC-voltage: 0.3, 12, 60, 120, 300, 600 V, 1200 V +-3%
  Internal resistance 50 kohm/V
  DC Ampere: 30 µA, 6, 60, 300 mA +-3%
  AC Voltage: 6, 30 , 120, 300, 600 V, 1200 V @ 10 kOhm/V
  Resistance: 10 K, 1 M, 10 M +-3% Scale lenght
  Powering: 3 V (UM-3*2 and a 22.5 volts battery.

• Net weight (2.2 lb = 1 kg)
• 0.670 kg / 1 lb 7.6 oz (1.476 lb)

• Author
• Model page created by Pentti Lamminen. See "Data change" for further contributors.
