Fernsehübergangsweiche 60 Ohm Ewn60B3/4

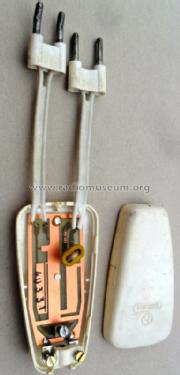

Fernsehübergangsweiche 60 Ohm Ewn60B3/4; Hirschmann GmbH & Co (ID = 1527136) Misc Fernsehübergangsweiche 60 Ohm Ewn60B3/4; Hirschmann GmbH & Co (ID = 1527138) Misc
Use red slider bar for more.

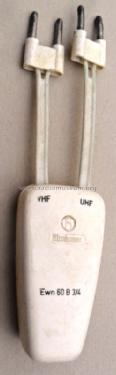

Fernsehübergangsweiche 60 Ohm Ewn60B3/4; Hirschmann GmbH & Co (ID = 1527136) Misc
Hirschmann GmbH & Co: Fernsehübergangsweiche 60 Ohm Ewn60B3/4 [Misc] ID = 1527136 249x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fernsehübergangsweiche 60 Ohm Ewn60B3/4, Hirschmann GmbH & Co., Richard; Esslingen

Country:  Germany
Manufacturer / Brand:  Hirschmann GmbH & Co., Richard; Esslingen
Year: 1968 ?? Category: Miscellaneous (Other, Various) - see notes
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Fernsehübergangsweiche 60 Ohm Ewn60B3/4 - Hirschmann GmbH & Co., Richard
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 50 x 25 x 200 mm / 2 x 1 x 7.9 inch
Notes

IEC auf 240Ohm symetrisch VHF&UHF. Mit DIN Adapter.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by Oskar Elm. See "Data change" for further contributors.
