For model 244, His Master's Voice (HMV, EMI); Bruxelles:

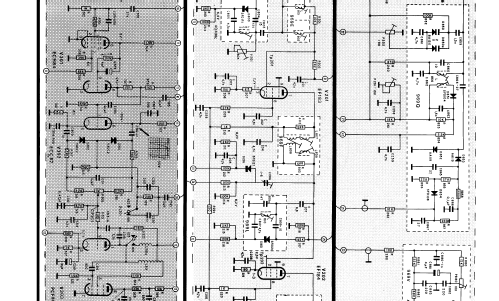

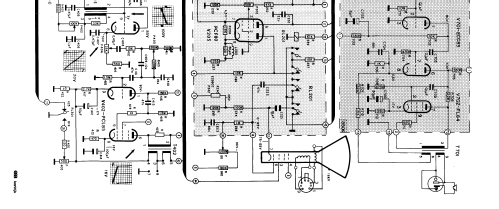

original schematic

Country:  Belgium
Manufacturer / Brand:  His Master's Voice (HMV, EMI); Bruxelles
Year: 1964 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC189 PCF801 ECC83 PL84 EF183 EF184 EF184 PFL200 PCF80 ECC82 PCF80 ECH84 PCF802 PL500 PY88 DY87 PCF80 PCL85 A65-13W
Semiconductors (the count is only for transistors) 7: AF139 AF139 SE5001 BF173 BF173 SE3001 SE3001
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 244 - His Master's Voice HMV, EMI;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Unit has 18 additional diodes including 2 varicaps for audio IF tuning.
5 standards: 625B, 819F, 625CCIR, 625F UHF, 625CCIR UHF.
Wave bands: VHF: E2-E11, F8a, F6; UHF: 470-860 MHz.
Source of data -- Original-techn. papers.

Model page created by Dirk Bladt. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (HMV, EMI); Bruxelles
Here you find 50 models, 38 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
