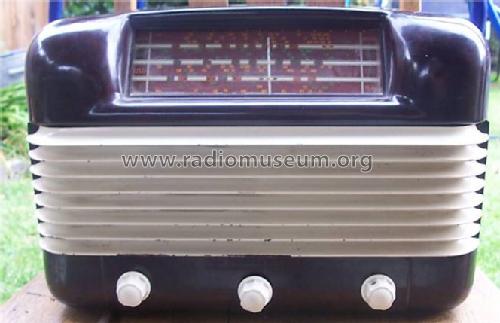

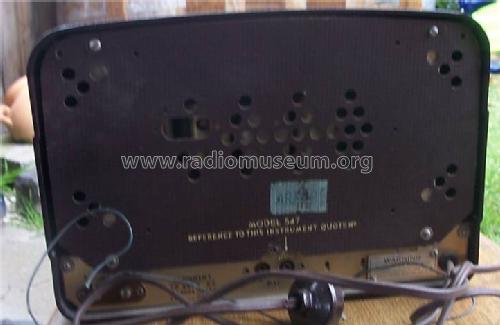

His Master's Voice: 547 Ch= A537BS [Radio] ID = 2547803 1400x1071
Select picture or schematic to display from thumbnails on the right and click for download.
For model 547 Ch= A537BS, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1948/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6U7G 6B6G 6V6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 221-240; 241-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 547 Ch= A537BS - His Master's Voice HMV, H.M.V.
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 14 x 9.75 x 7 inch / 356 x 248 x 178 mm
Net weight (2.2 lb = 1 kg) 13 lb (13 lb 0 oz) / 5.902 kg
Price in first year of sale 23.00 Aus£
Source of data -- Schematic

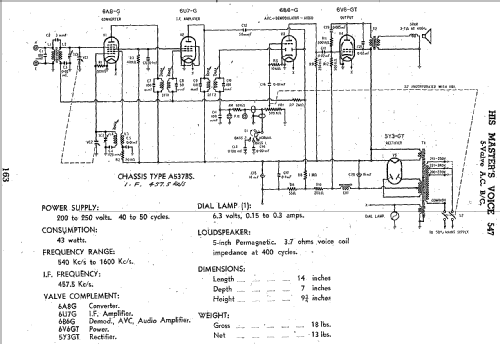

Circuit diagram reference Australian Official Radio Service Manual Vol. VII

Model page created by Peter Hughes. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Here you find 531 models, 283 with images and 210 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
