888 Ch= A536DM

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8GA EBF35 6U7G 6V6GT 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 221-240; 241-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 888 Ch= A536DM - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20 x 12 x 10.25 inch / 508 x 305 x 260 mm
Net weight (2.2 lb = 1 kg) 30 lb (30 lb 0 oz) / 13.620 kg
Price in first year of sale 37.00 Aus£

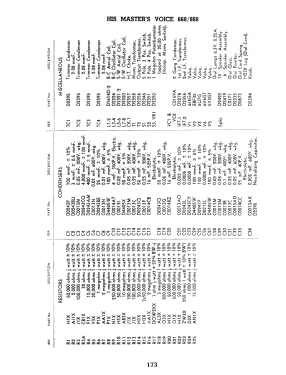

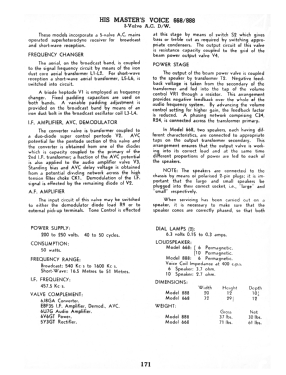

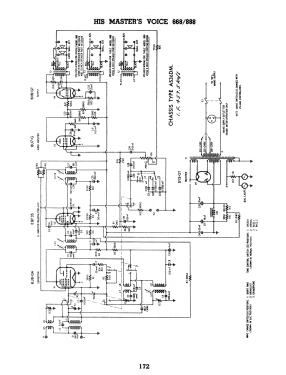

Circuit diagram reference Australian Official Radio Service Manual Vol. VII
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
