- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1936–1939
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 290697
Front view with lid closed.
- Number of Tubes
- 24
- Valves / Tubes
- MSP4 MSP4 MSP4 MSP4 MSP4 MSP41 D42 VMP4 X41 VMP4G MHD4 N41 U12 MSP4 MSP4 D42 MS4B MS4B N41 N41 U12 U12 U16 6/4 or 6/6
- Main principle
- Superhet and TRF, very rare principle; ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 900 TV Radio - His Master's Voice Masters,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
In 1934 the Marconi-EMI Television Company Ltd was formed bringing together the vision transmitter technologies of the Marconi Company with the television studio equipment and receiver technologies of the EMI Company. It was this company that provided the design and technology for Britain's television service using 405 lines and 25 frames/sec interlaced.
Transmissions commenced in November 1936 and continued until it was closed in the early 1980s. The HMV 900 was one of first television receivers designed by EMI and included a four band radio.
- Price in first year of sale
- 80.00 gns
- Mentioned in

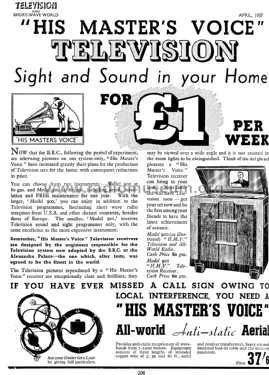

- Wireless World (The), London (WW, 79)
- Author
- Model page created by Peter Scott. See "Data change" for further contributors.
