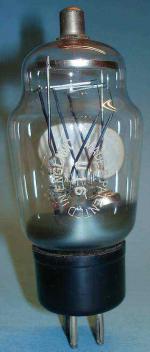

U16

Information - Help
ID = 8259

Country:
Great Britain (UK)
Brand: Common type Great Britain tube/semicond.
Tube type:  Half-Wave Vacuum Rectifier   Power-supply
Identical to U16

Base Europe 4-Pin B4 (Eu A, E, 4A) 1914 (Codex=Eo) Top contact with a cap.
Was used by Radio/TV-reception etc.
Filament Vf 2 Volts / If 1 Ampere / Direct / Specified voltage AC/DC
Description

Va <5kV rms. Ia <5mA mean with 0.25µF smoothing.


Dimensions (WHD)
incl. pins / tip
51 x 128 x mm / 2.01 x 5.04 x inch
Information source Taschenbuch zum Röhren-Codex 1948/49   und 1951
- - Manufacturers Literature

U16: GEC's catalogue supplement
Anonymous 413 Collector

u16lissen_sock.png U16: Tabu Röhren-Codex, 1948
Anonymous 15 Collector


Just Qvigstad
U16: MARCONI RECEIVING VALVES, LONDON, 1938
Jose Casas-Avalos

More ...
Usage in Models 3= 1936 ; 1= 1937 ; 1= 1938? ; 1= 1938 ; 1= 1948

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):7
