For model 921, His Master's Voice (HMV, EMI); Bruxelles:
B_HMV_921

Country:  Belgium
Manufacturer / Brand:  His Master's Voice (HMV, EMI); Bruxelles
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: KTW61M X61M KTW61M DH63M Y61 KT66 U52
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)

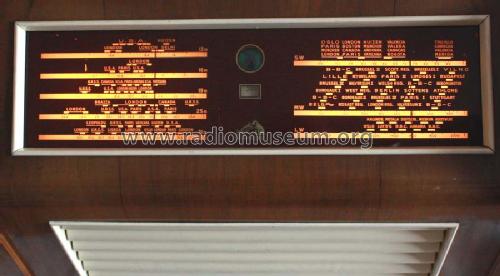

Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 205; 225; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 921 - His Master's Voice HMV, EMI;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 400 x 300 mm / 22 x 15.7 x 11.8 inch
Notes Gammes: MW de 190 à 570m, LW de 800 à 2000m, SW de 35 à 90m, + 5 gammes SW étalées: 13,16,19,25 et 31m. 2 positions de largeur de bande sur la moyenne fréquence. Fusible dans le circuit haute tension.
Net weight (2.2 lb = 1 kg) 20.3 kg / 44 lb 11.4 oz (44.714 lb)

Model page created by Georges Werts. See "Data change" for further contributors.
