All Transistor Ch= J3-16; His Master's Voice (ID = 1645744) Radio

All Transistor Ch= J3-16; His Master's Voice (ID = 1645746) Radio
All Transistor Ch= J3-16; His Master's Voice (ID = 1645116) Radio All Transistor Ch= J3-16; His Master's Voice (ID = 2022444) Radio
All Transistor Ch= J3-16; His Master's Voice (ID = 2218016) Radio All Transistor Ch= J3-16; His Master's Voice (ID = 2218017) Radio
Use red slider bar for more.
All Transistor Ch= J3-16; His Master's Voice (ID = 1645116) Radio
His Master's Voice: All Transistor Ch= J3-16 [Radio] ID = 1645116 930x618
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor Ch= J3-16, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:

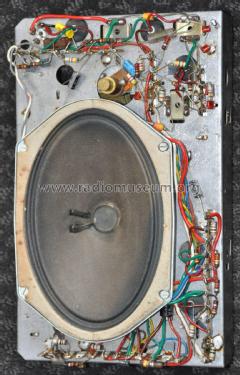

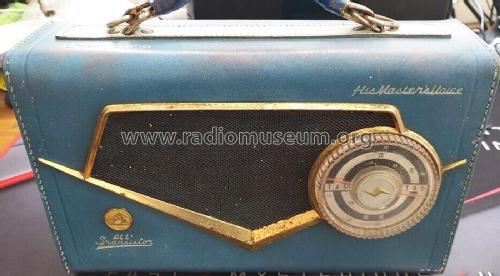

The case condition of this example is brilliant but the shoulder strap is lost and the handle is deteriorating. This model uses the same case as the J1-16 but a different circuit.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1959–1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N219 2N218 2N218 2N408 2N408 2N270 2N270 GEX34 GEX34
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: All Transistor Ch= J3-16 - His Master's Voice HMV, H.M.V.
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11 x 7 x 4 inch / 279 x 178 x 102 mm
Notes

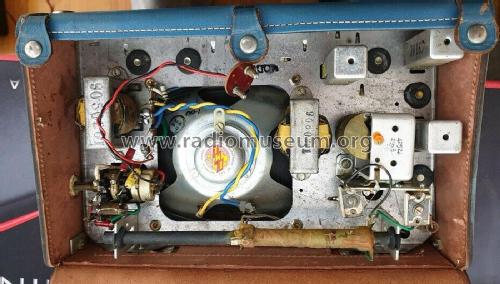

This radio uses a revision of the J1-16 chassis with the same case. It was superseded by the Rangemaster  (J4-17) with a tuned RF stage and Townsman (J6-19), both of which were cheaper.

Leather case in Steer-Hide available in Tan/Ivory, Blue/Grey & Red/Ivory.

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Price in first year of sale 44.10 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Model J3-16.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960, Page H10.)

Model page created by Brian Wilson. See "Data change" for further contributors.
