His Master's Voice: B61A [Radio] ID = 2299273 1400x1292
Select picture or schematic to display from thumbnails on the right and click for download.
For model B61A, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:

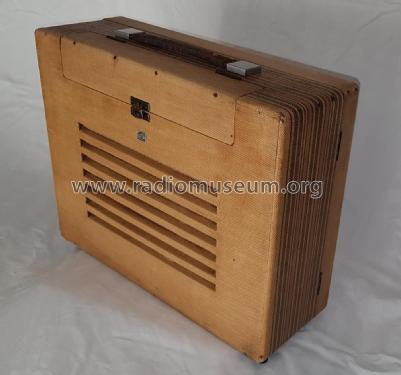

HMV model B61A with dial cover open. Photo taken with permission from owner.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1T4 1R5 1T4 1S5 3V4
Main principle Superhet with RF-stage; ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 45 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: B61A - His Master's Voice HMV, H.M.V.
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 15.375 x 12.25 x 5.625 inch / 391 x 311 x 143 mm
Notes

MODEL: B61A.

Features: 5V, B/C; 8" speaker; tuned R.F. stage; on/off switch in volume control; loop aerial mounted on chassis; external aerial and earth terminals; snap-action handle; leatherette-covered wooden case in light brown, dark browns and blue; hinged back; hinged up-lifting lid protects dial; operates on internal or external dry batteries; overall size 15" x 12" x 5¼"; weighs 16¾ lbs.

Retail selling price: £29/18/6.

Battery types used:

  • (A) 1 x 745 (Eveready) or 3745 (Diamond)
  • (B) 2 x 482 (Eveready) or 3482 (Diamond)
Net weight (2.2 lb = 1 kg) 11 lb 0 oz (11 lb) / 4.994 kg
Price in first year of sale 29.93 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. VIII
Mentioned in Radio Electrical Weekly, Portables Supplement, 29/10/1948.
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 8, 1950, Page 191.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
