Beverley F5-93 Ch= F5

Beverley F5-93 Ch= F5; His Master's Voice (ID = 2022454) Television

Beverley F5-93 Ch= F5; His Master's Voice (ID = 2022455) Television
Use red slider bar for more.
Beverley F5-93 Ch= F5; His Master's Voice (ID = 2022454) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 24: 6CW7 6BL8 6BY7 6BX6 6BX6 6BX6 6CK6 5AS4 5AS4 6BL8 6CS6 6BX6 6BX6 6AL5 6BM8 6BM8 6BM8 6BX6 6AL5 6BL8 6CM5 1S2 6R3 AW53-80
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Beverley F5-93 Ch= F5 - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 21 x 24 x 20.5 inch / 533 x 610 x 521 mm
Notes

Beverley F5-93 Ch= F5
21" table model with legs - in walnut, maple and rosewood.
Two 7" X 5" oval side mounted speakers.

Price in first year of sale 208.95 AUS £
Mentioned in -- Original prospect or advert (Australian TV model guide & price list)

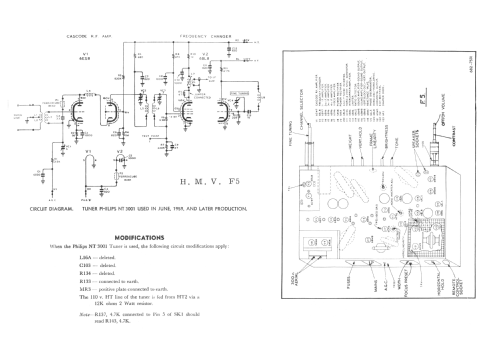

Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Television Receiver Chassis Type F5.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & Vol. 2, 1967, Page H27.)

Model page created by Martin Kent. See "Data change" for further contributors.
