C43B

C43B; His Master's Voice (ID = 1963586) Radio

C43B; His Master's Voice (ID = 1963587) Radio

C43B; His Master's Voice (ID = 1963588) Radio
Use red slider bar for more.
C43B; His Master's Voice (ID = 1963586) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8GA EBF35 6U7G 6V6GT 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 221-240; 241-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: C43B - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 32 x 29.5 x 12 inch / 813 x 749 x 305 mm
Price in first year of sale 57.75 AUS £

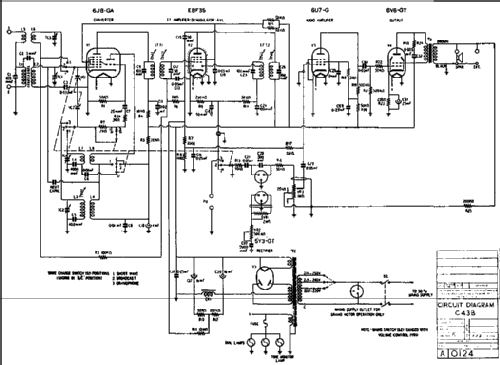

Circuit diagram reference Australian Official Radio Service Manual Vol. VIII
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 8, 1950, Page 206.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
