Challenge JE-1J; His Master's Voice (ID = 1606582) Radio
His Master's Voice: Challenge JE-1J [Radio] ID = 1606582 933x558
Select picture or schematic to display from thumbnails on the right and click for download.
For model Challenge JE-1J, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
Vinyl over padding and a rigid plastic former makes a nice collectors item.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) SE1010 SE1010 AX1202 AY1110 SE6002 AC188 AC187 OA90 OA680
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Challenge JE-1J - His Master's Voice HMV, H.M.V.
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 12.13 x 6.38 x 3 inch / 308 x 162 x 76 mm
Notes

Weight below includes battery.

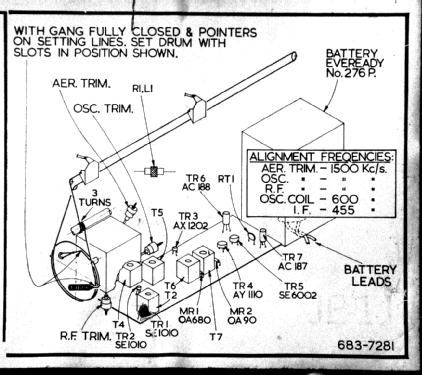

Later examples have the first five transistors BF195 BF195 BF195 BC556 (or it may be BC558) BC148. The original transistor list is shown on the schematic pasted in the rear of the radio. The output pair and the diodes are not changed.

Net weight (2.2 lb = 1 kg) 5 lb (5 lb 0 oz) / 2.270 kg
Price in first year of sale 65.00 AUD
Source of data - - Manufacturers Literature

Model page created by Stuart Irwin. See "Data change" for further contributors.
