Ernest Fisk E43A

Ernest Fisk E43A; His Master's Voice (ID = 1458571) Radio Ernest Fisk E43A; His Master's Voice (ID = 1458600) Radio
Ernest Fisk E43A; His Master's Voice (ID = 1458607) Radio Ernest Fisk E43A; His Master's Voice (ID = 1458612) Radio
Ernest Fisk E43A; His Master's Voice (ID = 1458613) Radio
Use red slider bar for more.
Ernest Fisk E43A; His Master's Voice (ID = 1458571) Radio
His Master's Voice: Ernest Fisk E43A [Radio] ID = 1458571 900x675
Select picture or schematic to display from thumbnails on the right and click for download.

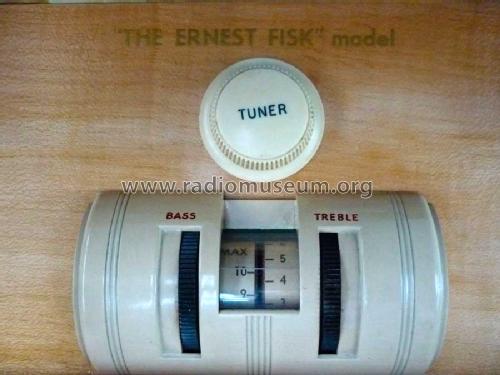

For model Ernest Fisk E43A, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:

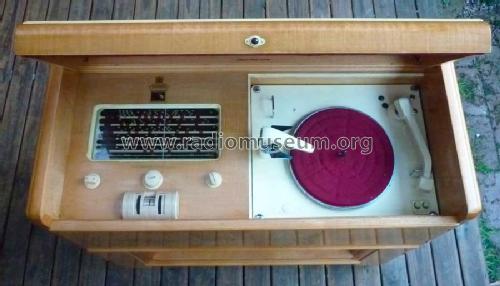

Front of cabinet top closed

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8GA EBF35 6U7G 6V6GT 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-220; 221-240; 241-250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Ernest Fisk E43A - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 36 x 31 x 18 inch / 914 x 787 x 457 mm
Notes

HMV Ernest Fisk Radiogram:
The cabinet is styled as a Streamline unit,produced from flat and steam formed plywood. Finishes available in Walnut, Silver Ash & Mahogany. Set into the interior are 2 Alinco permanent magnet speakers one 6 inch and one ten inch eliptical speaker produced by HMV.
The radio amplifier is produced from cut and folded sheet steel fitted with relevant components.

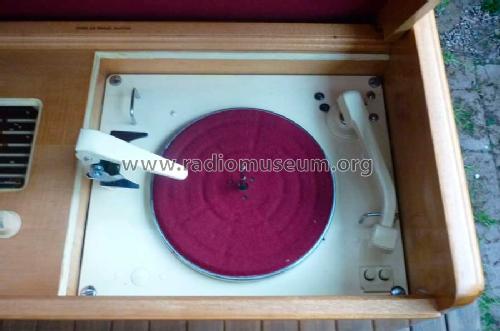

The turntable is a Garrard R65 Automatic turntabe set with 1 speed.

Net weight (2.2 lb = 1 kg) 118 lb 0 oz (118 lb) / 53.572 kg
Price in first year of sale 120.75 AUS £

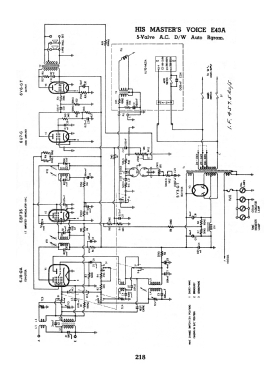

Circuit diagram reference Australian Official Radio Service Manual Vol. VIII

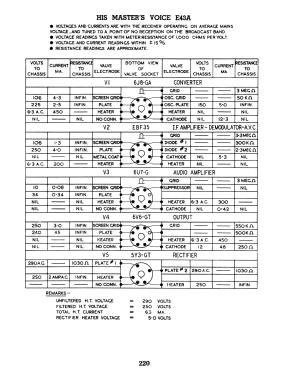

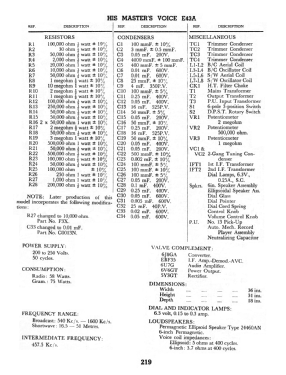

Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 8, Page 218.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
