Little Nipper Mk. II A13B
His Master's Voice: Little Nipper Mk. II A13B [Radio] ID = 595763 933x679
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1950/1951 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: 6A8G EBF35 6V6GT 6X5GT |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; Reflex |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 200/225; 226/250 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm |
| Power out | |
| from Radiomuseum.org | Model: Little Nipper Mk. II A13B - His Master's Voice HMV, H.M.V. |

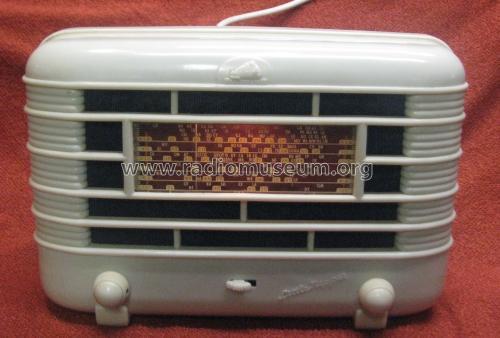

| Material | Bakelite case |
| Shape | Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only). |
| Dimensions (WHD) | 12 x 7.75 x 5.75 inch / 305 x 197 x 146 mm |
| Notes | Colours available in Cream, Walnut, Green & Burgundy. |
| Net weight (2.2 lb = 1 kg) | 10 lb 0 oz (10 lb) / 4.540 kg |
| Price in first year of sale | 18.25 AUS £ |
| Collectors' prices | |
| External source of data | AORSM CD |
| Literature/Schematics (1) | - - Manufacturers Literature (HMV Service Manual.) |
| Literature/Schematics (2) | Australian Official Radio Service Manual AORSM (Volume 9, 1951, Page 133.) |
Model page created by Peter Hughes. See "Data change" for further contributors.
