Rangemaster, Little Nipper J4-17 Ch= J4; His Master's Voice (ID = 806224) Radio
His Master's Voice: Rangemaster, Little Nipper J4-17 Ch= J4 [Radio] ID = 806224 933x669
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rangemaster, Little Nipper J4-17 Ch= J4, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1961–1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC170 OC170 OC169 OC169 OC75 OC74 OC74
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
Power out
from Radiomuseum.org Model: Rangemaster, Little Nipper J4-17 Ch= J4 - His Master's Voice HMV, H.M.V.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 170 x 110 mm / 11.8 x 6.7 x 4.3 inch
Notes

His Master's Voice Model J4-17 "Range-Master"

Battery operated B/C cordless/portable radio having seven transistors and two diodes. Cabinet with "fold-away" handle of moulded Cycolac (a new pliable material which the manufacturer claims is unbreakable), in two-tone colours of white with red, grey, pink or blue.

Features: Ferrite rod aerial; provision for external aerial and earth. Frequency range 540-1600 kC/s. Operates from one Eveready Type 276P (9V) battery; consumption at zero audio output, 11 mA, 50 mW output 30mA; expected average operational life of 400 hours is claimed for battery. Speaker: special 5"; peak audio output ½W from Class AB push-pull output stage. New design IF transformers.

Controls: volume, on-off/tone. Straight-line dial scale with all Australian stations; dial light operated by push-button switch.

Easily serviced by removing two screws and back to expose printed circuits and components.

The early versions are marked "HMV Transistor" on the handle with later versions marked "HMV Rangemaster". Both use the J4-17 chassis. Later radios have a socket for a Car Antenna. Serial numbers ranging from 00454 to above 32614 indicate an extended production run.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 30.45 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Type J4)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page H12)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page H34. (Also at KevinChant.com))
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Aug 1961 to Feb 1966.)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Here you find 532 models, 284 with images and 211 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
His Master's Voice: Rangemaster, Little Nipper J4-17 Ch= J4
Threads: 2 | Posts: 2
Hits: 1347     Replies: 0
hismasters: J4-17; Rangemaster, Little Nipper
Brian Wilson
13.Feb.13
  1

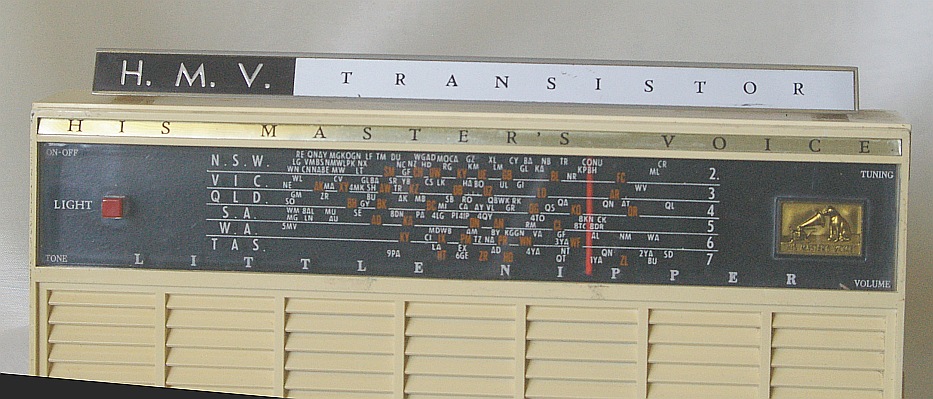

One of my many examples of this model (J4-17 chassis No. 00454) has on the handle the word TRANSISTOR where the later radios have RANGEMASTER (or TOWNSMAN (J6-19 chassis) for the 6 transistor look-alike). See the photo below which is also on the second page of the model.
