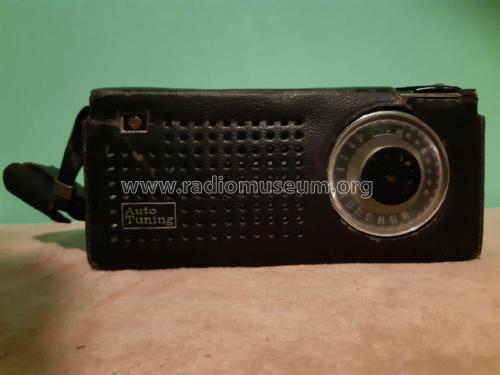

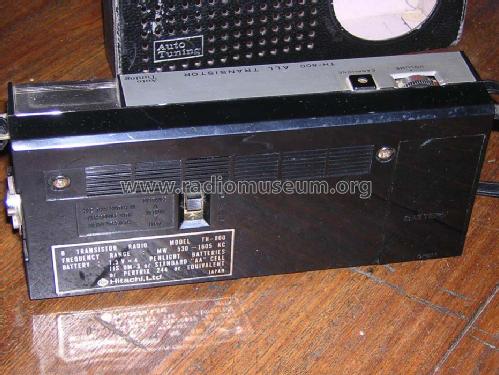

All Transistor Auto Tuning TH-800
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 160455
-
- alternative name: Hitachi Sales Corp. of America
from my collection
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 4 X 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: All Transistor Auto Tuning TH-800 - Hitachi Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 190 x 90 x 40 mm / 7.5 x 3.5 x 1.6 inch
- Notes
-
La sintonia ruota automaticamente, tramite un motorino a molla caricato esternamente, alla prima stazione sintonizzata un relè blocca la rotazione del variabile.
Sensitivity switch according to signal strenght :
D-M-L
Distance-Medium-Local
See also model WH-800L.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Fabio Masetti. See "Data change" for further contributors.
