TH-666R

TH-666R; Hitachi Ltd.; Tokyo (ID = 112373) Radio
TH-666R; Hitachi Ltd.; Tokyo (ID = 807140) Radio TH-666R; Hitachi Ltd.; Tokyo (ID = 807139) Radio
TH-666R; Hitachi Ltd.; Tokyo (ID = 1112425) Radio TH-666R; Hitachi Ltd.; Tokyo (ID = 807141) Radio
TH-666R; Hitachi Ltd.; Tokyo (ID = 807142) Radio TH-666R; Hitachi Ltd.; Tokyo (ID = 807143) Radio
TH-666R; Hitachi Ltd.; Tokyo (ID = 807144) Radio TH-666R; Hitachi Ltd.; Tokyo (ID = 1112424) Radio
TH-666R; Hitachi Ltd.; Tokyo (ID = 2311507) Radio TH-666R; Hitachi Ltd.; Tokyo (ID = 2311506) Radio
Use red slider bar for more.
TH-666R; Hitachi Ltd.; Tokyo (ID = 807140) Radio

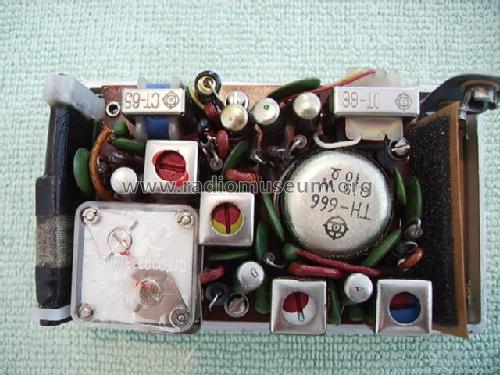

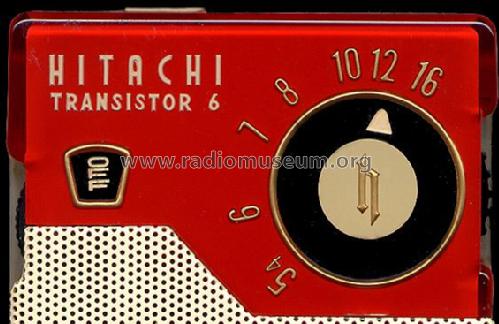

Hitachi Ltd.; Tokyo: TH-666R [Radio] ID = 807140 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model TH-666R, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N219 or. 2SA15 2N218 or. 2SA12 2N218 or. 2SA12 2N215 or. 2SB75 2N217 or. 2SB77 2N217 or. 2SB77 1N34A
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TH-666R - Hitachi Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

See also the model TH-666 and the external speaker.

Mentioned in Beitman Radio Diagrams, Vol. 20, 1960

Model page created by Trev Levick. See "Data change" for further contributors.
