Marie TH-862R

Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 112375) Radio

Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 563052) Radio

Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 563054) Radio

Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 563055) Radio

Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 563056) Radio
Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 1761443) Radio Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 496097) Radio
Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 289226) Radio Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 496099) Radio
Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 114756) Radio Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 496098) Radio
Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 289229) Radio Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 289228) Radio
Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 496100) Radio Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 496101) Radio
Use red slider bar for more.
Marie TH-862R; Hitachi Ltd.; Tokyo (ID = 1761443) Radio
Hitachi Ltd.; Tokyo: Marie TH-862R [Radio] ID = 1761443 1333x926
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marie TH-862R, Hitachi Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Hitachi Ltd.; Tokyo
alternative name

Hitachi Sales Corp. of America
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: HJ74 2N219 2N218 2N218 2N215 2N215 HV15 2N217 2N217
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: Marie TH-862R - Hitachi Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 4.625 x 2.8125 x 1.25 inch / 117 x 71 x 32 mm
Notes

Hitachi TH862R Marie

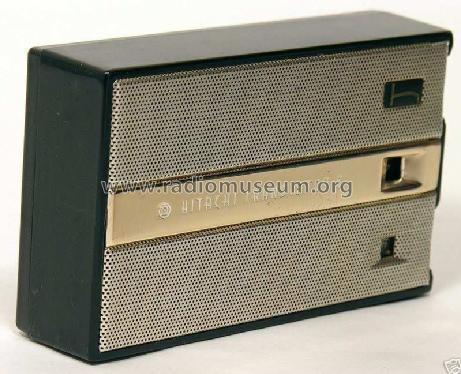

Eight-transistor pocket size with 2¼" dynamic speaker. Supplied with cowhide leather case, auxiliary antenna and earphone. Packed in attractive display box. Uses 1 x 216 Eveready type (standard 9V) battery. Shockproof two-tone plastic.

Sold in Australia during 1959 & 1960 for £35/14/- Price includes battery.

Net weight (2.2 lb = 1 kg) 0.330 kg / 0 lb 11.6 oz (0.727 lb)
Mentioned in Beitman Radio Diagrams, Vol. 20, 1960

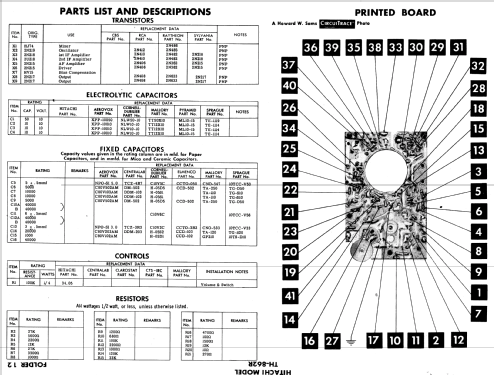

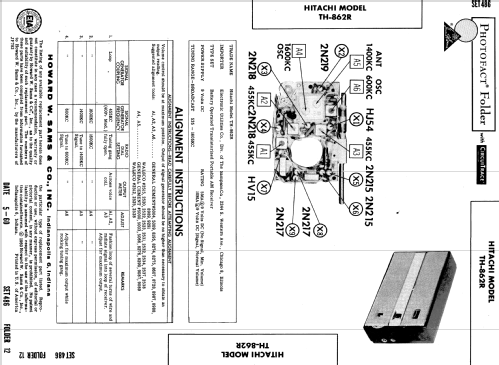

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 486 folder 12 date 5-60)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (E Series Handbook, Page H5. (also at KevinChant com))
Literature/Schematics (3) Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1960.)

Model page created by Trev Levick. See "Data change" for further contributors.
