Sperr- und Saugkreis F303

Sperr- und Saugkreis F303; Görler, J. K.; (ID = 2381271) mod-past25
Use red slider bar for more.
Sperr- und Saugkreis F303; Görler, J. K.; (ID = 2381271) mod-past25
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1948 ? Category: Radio module post 1925 (not a part, not a key)
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Sperr- und Saugkreis F303 - Görler, J. K.; Berlin
Shape Chassis only or for «building in»
Dimensions (WHD) 30 x 35 x 38 mm / 1.2 x 1.4 x 1.5 inch

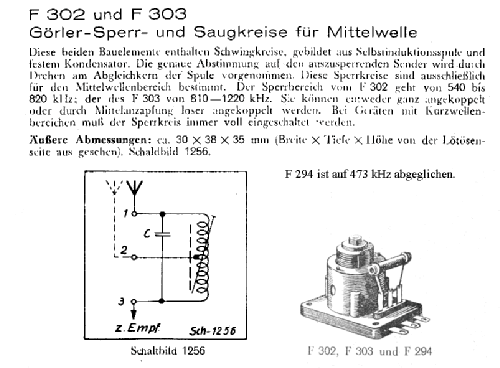

Notes Sperr- und Saugkreis für Mittelwellen. Abstimmbereich 810-1220 KHz. Der Typ F302 hat einen Abstimmbereich von 540-820 KHz.
Net weight (2.2 lb = 1 kg) 0.015 kg / 0 lb 0.5 oz (0.033 lb)
Source of data - - Manufacturers Literature

Model page created by Manfred Rauschen. See "Data change" for further contributors.
