• Country
• Germany

• Manufacturer / Brand
• Hochfrequenz Werkstätten Meuselwitz, VEB (Ostd.) - vorm. Görler

• Year
• 1952

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 215651

• • alternative name: Görler Nachkrieg
  • Brand: VEB

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Special material, described in the notes.

• from Radiomuseum.org

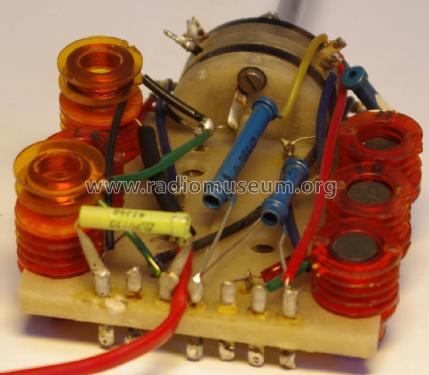

• Model: Super-Spulensatz SU2 - Hochfrequenz Werkstätten

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 75 x 36 x 80 mm / 3 x 1.4 x 3.1 inch

• Notes
• Weiterentwicklung des SU1 und austauschbar mit diesem.
  Veränderungen: K-und M-Bereich hochinduktive, L-Bereich niederinduktive Antennenankopplung. Anschluss 3 entfällt, da intern andere Masseverbindungen.
  Trägermaterial Amenit, Spulen teilweise HF-Litze.

• Net weight (2.2 lb = 1 kg)
• 0.120 kg / 0 lb 4.2 oz (0.264 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• HFWM-Liste Superspulensatz 1952

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
