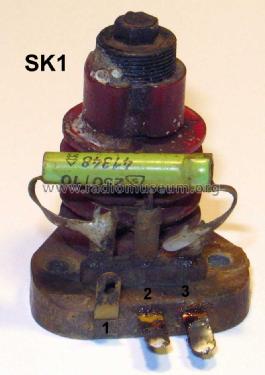

ZF-Saugkreis SK1

ZF-Saugkreis SK1; Hochfrequenz (ID = 1424963) mod-past25
ZF-Saugkreis SK1; Hochfrequenz (ID = 1424952) mod-past25 ZF-Saugkreis SK1; Hochfrequenz (ID = 2080383) mod-past25
Use red slider bar for more.
ZF-Saugkreis SK1; Hochfrequenz (ID = 1424952) mod-past25
Hochfrequenz: ZF-Saugkreis SK1 [mod-past25] ID = 1424952 933x1316
Select picture or schematic to display from thumbnails on the right and click for download.
For model ZF-Saugkreis SK1, Hochfrequenz Werkstätten Meuselwitz, VEB (Ostd.) - vorm. Görler

Country:  Germany
Manufacturer / Brand:  Hochfrequenz Werkstätten Meuselwitz, VEB (Ostd.) - vorm. Görler
alternative name

Görler Nachkrieg
Brand
VEB
Year: 1948 ? Category: Radio module post 1925 (not a part, not a key)
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Wave Bands given in the notes.
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: ZF-Saugkreis SK1 - Hochfrequenz Werkstätten
Material Special material, described in the notes.
Shape Chassis only or for «building in»
Dimensions (WHD) 30 x 35 x 30 mm / 1.2 x 1.4 x 1.2 inch
Notes

ZF-Saugkreis, abgestimmt auf 473 kHz, passend zum Superspulensatz SU1.

Baugleich mit Görler F294.

Net weight (2.2 lb = 1 kg) 0.015 kg / 0 lb 0.5 oz (0.033 lb)
Mentioned in HFWM-Liste HF1

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
