• Year
  • 1950 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 98949

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 3.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

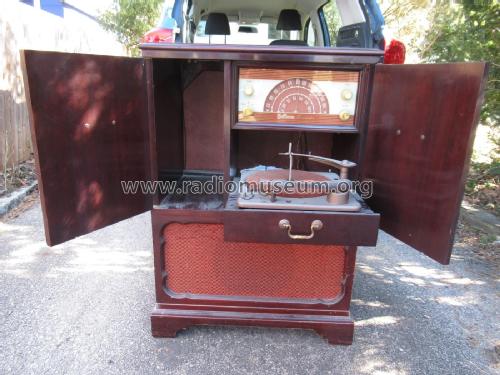

  • Model: 534 Ch= 167 - Hoffman Radio Corp.; Los
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 26.3 x 36.5 x 17.1 inch / 668 x 927 x 434 mm
  • Notes
  • Color=Mahogany.

    The record changer is a Webster model 100-3.

  • Circuit diagram reference
  • Rider's Perpetual, Volume 22, covering 1951
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
