• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 280999

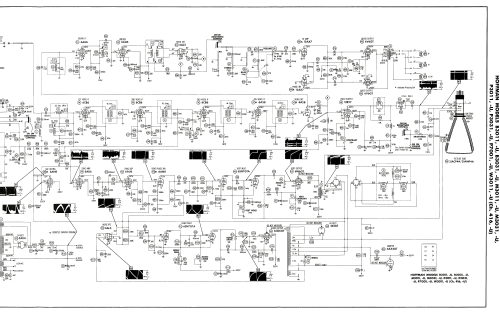

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 25
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: B3011 Ch= 416 - Hoffman Radio Corp.; Los
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The HOFFMAN  model B3011 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, equipped with VHF-tuner 9889, chassis 416 and picture tube 21ACP4A or 21AMP4A.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
