• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1959 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 149302

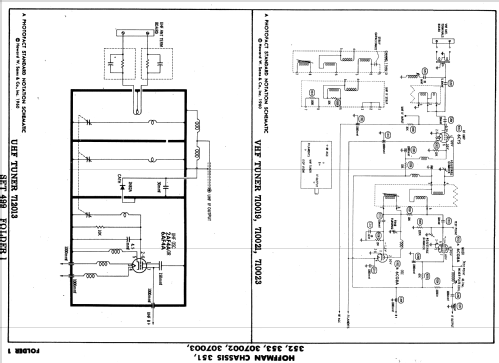

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6CY5 6CG8A 6BZ6 6BZ6 6AM8A 6AW8A 6AU6 6DT6 6V6GT 12AU7A 6CG7 6DT5 6AL5 6CG7 6DQ6A 6DA4 1B3GT 5U4GB

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org
• Model: B3753 Ch= 353 - Hoffman Radio Corp.; Los

• Notes
• Picture tube 17BZP4 or 21CEP4 or 23CP4. Channels 2 thru 13 VHF, 14 thru 83 UHF. Sams photofact set 499 folder 1 date 9-60 features the Hoffman models B1367, B1371, K1367, K1371, M1367, M1371, SP1367, SP1371, W1367, W1371 with chassis 351, the models BR1367, BR1371, KR1367, KR1371, MR1367, MR1371, SPR1367, SPR1371, WR1367, WR1371 with chassis 352, the models B3723, B3743, B3753, M3723, M3743, M3753, SP3723, SP3743, SP3753, W3723, W3743, W3753 with chassis 353 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 499 folder 1 date 9-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
