For model B8006 Ch= 1120 Ch= 1129, Hoffman Radio Corp.; Los Angeles (CA):
I took this of my own unit.

Country:  United States of America (USA)
Manufacturer / Brand:  Hoffman Radio Corp.; Los Angeles (CA)
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 14: 6BK7B 6AB4 12AT7 6BE6 EM81 6BA6 6AU6 6AL5 6X4 ECC83 ECC83 7189 7189 EZ81
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: B8006 Ch= 1120 Ch= 1129 - Hoffman Radio Corp.; Los
Notes AC operated stereo amplifier with 4 speed automatic record changer. Sams photofact set 483 folder 9 date 5-60 features the Hoffman models B807, M807, SP807 and W807 with amp chassis 1129 and the models B8006, M8006, SP8006 and W8006 with tuner chassis 1120 and amp chassis 1129 as the same schematic.

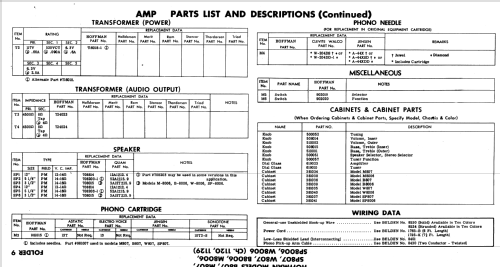

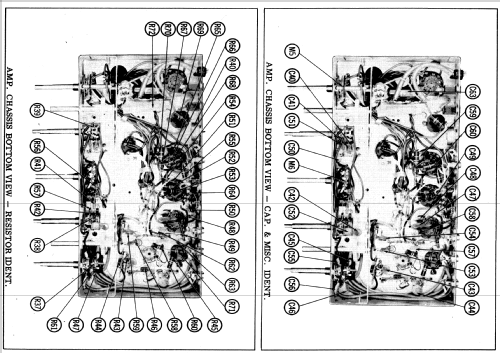

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 483 folder 9 date 5-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
