• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44394

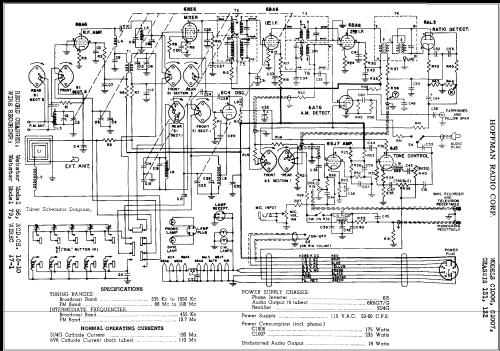

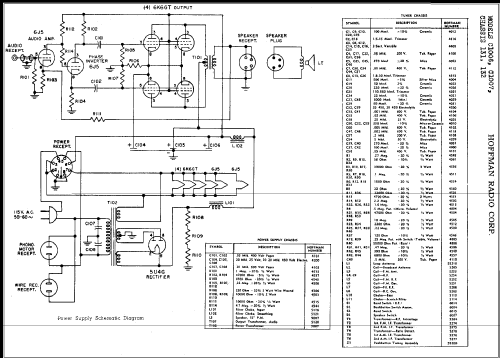

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BA6 6BE6 6C4 6BA6 6U5 6BA6 6AL5 6AT6 6SJ7 6J5GT 6SJ7 6SL7GT 6SL7GT 6K6GT 6V6GT 6X5GT 6J5 6J5GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Power out
• 18 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C1006 Ch= 131 - Hoffman Radio Corp.; Los

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• additionally tubes are 4 x 6K6GT and 5U4G.
  Combination Phono-Radio-Wire Recorder.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Literature/Schematics (1)

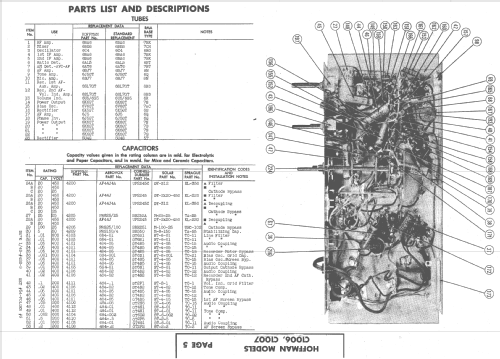

• Photofact Folder, Howard W. SAMS (Set 54, Folder 9)

• Other Models

• Here you find 912 models, 212 with images and 879 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Hoffman Radio Corp.; Los Angeles, CA
