Four Valve Regenerative Receiver RFS-01

Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2445675) Radio

Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2445678) Radio

Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2452665) Radio

Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2452666) Radio
Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2445669) Radio Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2452651) Radio
Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2452652) Radio Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2452670) Radio
Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2452671) Radio Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2452677) Radio
Use red slider bar for more.
Four Valve Regenerative Receiver RFS-01; Homebrew - RECENT - (ID = 2445669) Radio
Homebrew - RECENT -: Four Valve Regenerative Receiver RFS-01 [Radio] ID = 2445669 1400x1009
Select picture or schematic to display from thumbnails on the right and click for download.
For model Four Valve Regenerative Receiver RFS-01, Homebrew - RECENT - but NOT Replica; España

Country:  Spain
Manufacturer / Brand:  Homebrew - RECENT - but NOT Replica; España
Year: 2019 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1N5GT 1N5GT 1G4GT 1G6GT
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out 0.12 W (max.)
from Radiomuseum.org Model: Four Valve Regenerative Receiver RFS-01 - Homebrew - RECENT - but NOT
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 350 x 160 x 230 mm / 13.8 x 6.3 x 9.1 inch
Notes

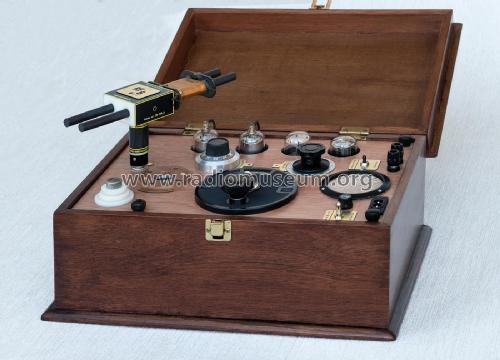

This project started not only for fun, also as an exercise to test the capabilities of early radio receivers. Being surprised with the performance, then decide to realize this model following the aesthetics of early radio equipment, using antique components wherever was possible.
This two-step tuned receiver with regeneration, has lower sensitivity but almost similar selectivity and better noise rejection than standard superhet receivers.


Acknowledgments
Special thanks to my friend Dr. Ricard Morrón. His outstanding knowledge on early radio technologies, enthusiasm and contribution with vintage components has been essential in executing this project.

Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
Literature/Schematics (1) -- Schematic

Model page created by Jose Gonzalez-Varela. See "Data change" for further contributors.



All listed radios etc. from Homebrew - RECENT - but NOT Replica; España
Here you find 2 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
