For model Annette SA6330, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1968–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF125 AF125 AF125 AC127 AC132 AC127 AC132 AA119 AA119 AA119 BA114
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Annette SA6330 - Horny Hornyphon; Wien
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 255 x 110 x 45 mm / 10 x 4.3 x 1.8 inch
Notes Parallelgerät zum Philips 22RL282.
Price in first year of sale 830.00 ATS
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

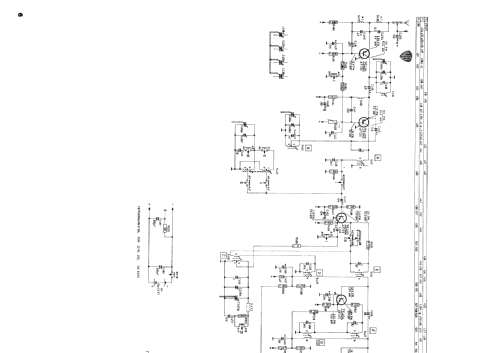

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
