Belcanto G
Use red slider bar for more.
Horny Hornyphon;: Belcanto G [Radio] ID = 2029035 1400x2023

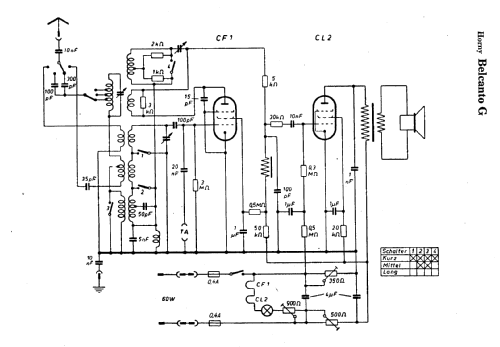

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Hornyphon | ||||
|---|---|---|---|---|---|
| Year: 1934/1935 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 2: CF1 CL2 |
| Main principle | TRF with regeneration; 1 AF stage(s) |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Direct Current supply (DC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Belcanto G - Horny Hornyphon; Wien |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |
