Diola S4 WM5104A/00

Diola S4 WM5104A/00; Horny Hornyphon; (ID = 113550) R-Player

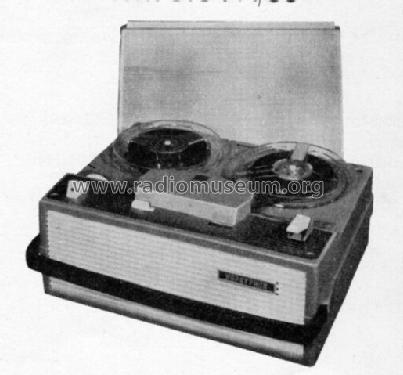

Diola S4 WM5104A/00; Horny Hornyphon; (ID = 413697) R-Player Diola S4 WM5104A/00; Horny Hornyphon; (ID = 113549) R-Player

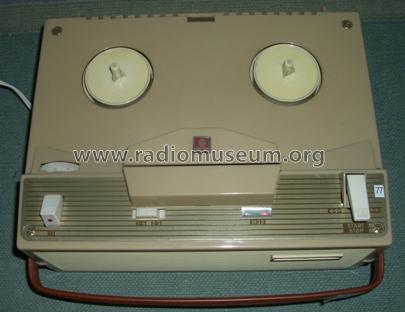

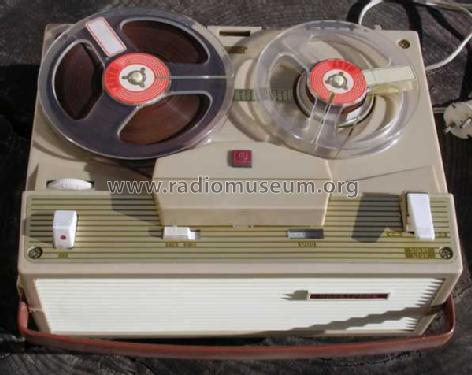

Diola S4 WM5104A/00; Horny Hornyphon; (ID = 317220) R-Player Diola S4 WM5104A/00; Horny Hornyphon; (ID = 413696) R-Player

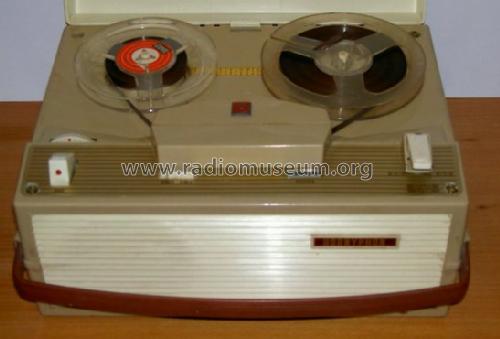

Diola S4 WM5104A/00; Horny Hornyphon; (ID = 436881) R-Player
Use red slider bar for more.

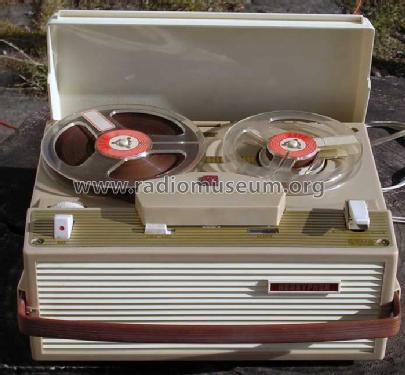

Diola S4 WM5104A/00; Horny Hornyphon; (ID = 413697) R-Player
Horny Hornyphon;: Diola S4 WM5104A/00 [R-Player] ID = 413697 700x647
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diola S4 WM5104A/00, Horny (Hornyphon); Wien:
Dieses Gerät habe ich ca. 1963 gekauft und es funktioniert immer noch einwandfrei. Lediglich ein Treibriemen war einmal zu erneuern.

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1961 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 6: AC107 or. OC58 OC75 OC44 OC75 OC74 OC74
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110, 127, 220, 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Diola S4 WM5104A/00 - Horny Hornyphon; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 320 x 240 x 150 mm / 12.6 x 9.4 x 5.9 inch
Notes Bandgeschwindigkeit 9,5 cm/sec
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 2'295.00 öS
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Schematic

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
