Diplomat W554A /00 /70
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1964/1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 73288
-
- Brand: Hornyphon
Click on the schematic thumbnail to request the schematic as a free document.

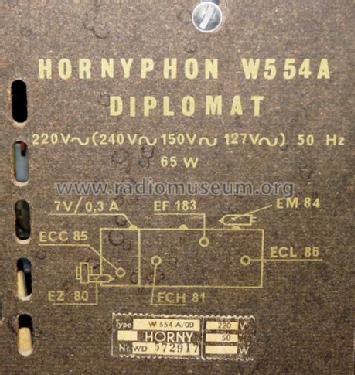

- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Wired Wireless Receiver (RF!)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Diplomat W554A /00 /70 - Horny Hornyphon; Wien

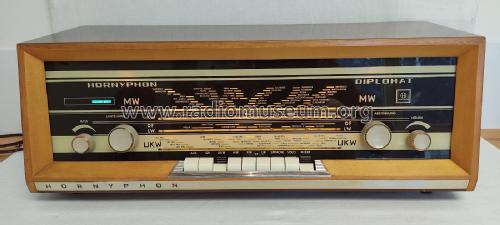

- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 600 x 230 x 240 mm / 23.6 x 9.1 x 9.4 inch
- Notes
-
2 Ausführungen:
/00 = dunkel hochglänzend.
/70 = hell matt.Parallelgerät zur Philips Symphonie B5A43A
- Net weight (2.2 lb = 1 kg)
- 8.7 kg / 19 lb 2.6 oz (19.163 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
