• Year
  • 1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80849
    • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 16
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

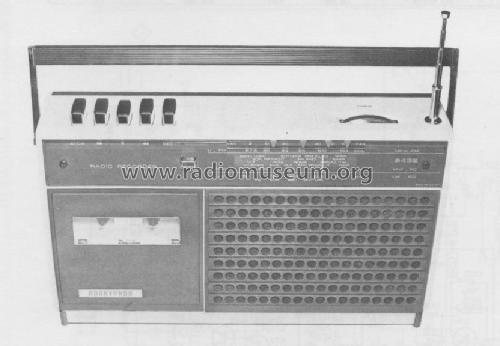

  • Model: Duo L SX8432 - Horny Hornyphon; Wien
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 335 x 205 x 95 mm / 13.2 x 8.1 x 3.7 inch
  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)

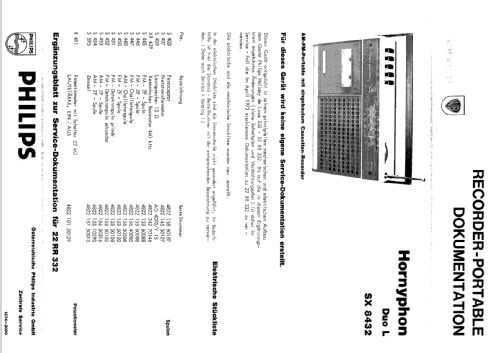

  • -- Original-techn. papers.
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
