Exportvariante W257U /6b

Exportvariante W257U /6b; Horny Hornyphon; (ID = 63183) Radio
Exportvariante W257U /6b; Horny Hornyphon; (ID = 19482) Radio Exportvariante W257U /6b; Horny Hornyphon; (ID = 19484) Radio
Exportvariante W257U /6b; Horny Hornyphon; (ID = 19485) Radio Exportvariante W257U /6b; Horny Hornyphon; (ID = 19486) Radio

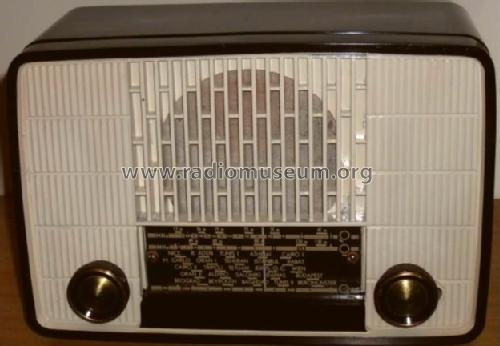

Exportvariante W257U /6b; Horny Hornyphon; (ID = 19487) Radio Exportvariante W257U /6b; Horny Hornyphon; (ID = 805843) Radio
Use red slider bar for more.
Exportvariante W257U /6b; Horny Hornyphon; (ID = 19482) Radio
Horny Hornyphon;: Exportvariante W257U /6b [Radio] ID = 19482 933x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model Exportvariante W257U /6b, Horny (Hornyphon); Wien:
Leider Heruntergefallen.

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UAF42 UBC41 UL84 UY85
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Exportvariante W257U /6b - Horny Hornyphon; Wien
Material Bakelite case
Dimensions (WHD) 280 x 190 x 140 mm / 11 x 7.5 x 5.5 inch
Notes

Nicht zu verwechseln mit dem Batteriemodell W257B von 1941 und anderen Varianten.
Diese Exportversion konnte man auch in Österreich kaufen - meldet Hans Comper.

Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb
